Aluminium Alloy 6063 Sheet/Coil/Plates is a heat-treatable alloy primarily used in extrusion. This alloy is widely known for its medium strength, excellent corrosion resistance and lightweight properties. It is popular in building applications, for example, window frames, roofs, and doors. Other notable uses include electronic and machine parts, furniture, heat sinks, ornaments, and cookware. This alloy is lightweight with a 2.7 g/cm³ density, making it an ideal material for applications requiring a low mass.
Aluminium Alloy 6063 Sheets Features In addition to its lightweight, aluminium alloy 6063 sheets have several features that make them popular in various application areas. These include high corrosion resistance, good thermal conductivity and the ability to be easily formed or shaped. They can also be anodised, increasing their corrosion and wear resistance and improving surface finish.
Table Content
Aluminium Alloy 6063 Coils Corrosion Resistance One of the most important features of the Aluminium Alloy 6063 Coils is its corrosion resistance, resulting from the alloying elements like magnesium, silicon, and copper that make it up. The levels of corrosion resistance of aluminium alloy 6063 vary, which is determined by the surface preparation and the properties of the environment it is used in. Anodising can increase the protective oxide layer in salty or acidic environments. Overall, aluminium alloy 6063 offers excellent corrosion resistance and is ideal for harsh weather conditions.
Aluminium Alloy 6063 Plates Chemical Composition The chemical composition of the Aluminium Alloy 6063 Plates is important to understand, as this determines the material’s properties and applications. For example, this alloy comprises 0.7% copper, 0.4-0.8% magnesium, 0.4-0.8% silicon, 0.15% iron, 0.2% zinc, 0.05% manganese, and 0.05% chromium. The 6063 aluminium alloy has a 98.9% composition, making it one of the higher-purity alloys available.
Aluminium Alloy 6063 Sheets Physical & Mechanical Properties Like all materials, Aluminium Alloy 6063 Sheets have physical and mechanical properties that make them so popular in manufacturing. With a tensile strength of 145 MPa and yield strength of 115 MPa, aluminium alloy 6063 has a good strength-to-weight ratio and is corrosion-resistant. Additionally, this alloy has excellent elongation, making it easy to form and mould into different shapes.
Rolling
Slitting
Heat Treatment
Ultrasonic Tester Checks
| Standards | ASTM B209 / ASME SB209, ANSI H35.1/H35.1(M) |
| Temper | O, F, H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H36, H38, H111, H112, H321, T3, T4, T5, T6, T7, T351, T451, T651, T851 |
| Thickness | 0.2~300mm |
| Width | 500~2500mm |
| Length | 500~10000mm |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet / Plates/ Strips/ Coils/ Chequered Plates |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
-
6063 Aluminium Sheets
-

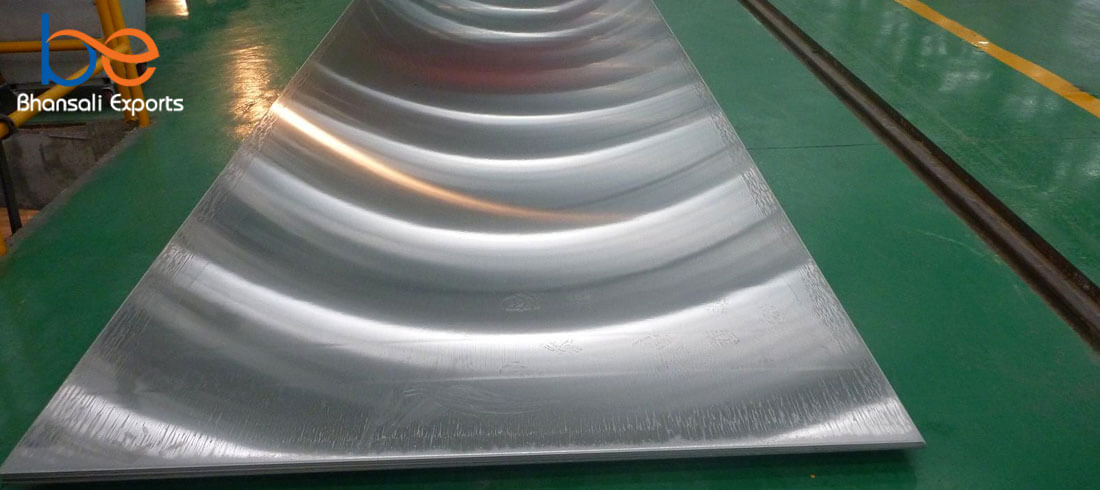

6063 Aluminium Plate
-
6063 Aluminium Coils
-
6063 Aluminium Strips
-
6063 Aluminium Foils
-
6063 Aluminium Circle
- Aluminium 6063 Industrial Plates
- 6063 Aluminium Coil Stock
- 3.32206 Coils
- Aluminium 6063 Hot Rolled Plates
- Aluminum Polish Sheet 6063
- 6063 Aluminium Alloy HR Plates
- UNS AA6063 Sheets
- Aluminum Alloy 6063 Circle
- ASME SB209 Aluminium 6063 Sheets
- Aluminium 6063 Coils Sheet Price List
- Aluminium Alloy 6063 Slitting Coils
- 6063 Aluminium Cold Rolled Sheets
- Aluminium 6063 Strips
- 6063 Aluminium Perforated Sheet
- Aluminium 6063 Plate
- ASTM B209 6063 Aluminium Plates
- Aluminium 6063 Sheets
- Aluminum 6063 Coils
- 6063 Aluminium Plates Price
- ASTM B209 Aluminium 6063 Coils
- Aluminium 6063 Rolls
- Aluminum 6063 Plates
- Aluminum AA6063 Coils
- 6063 Aluminium Sheet Stock
- Aluminium Alloy 6063 HR Sheet
- Alloy 6063 CR Plates
- Aluminium 6063 Shim Sheets
- 6063 Aluminum Hot Rolled Coils
- Alloy 6063 Sheet Price Per Kg
- Aluminium 3.32206 Plates
- 6063 Aluminium Shim Coils
- Aluminium 6063 Chequered Plate
- ASTM B209 6063 Aluminium Alloy Sheets
- Aluminum Alloy 6063 Rings
- Aluminium Alloy 6063 Slit Coils
- Alloy 6063 Foils
| UNS | EN | DIN, WNR | ISO | BS (OLD) | USA | WNR |
| A96063 | AW-AlMg0,7Si EN AW-6063 |
AlMgSi0.5 | AlMg0,7Si | HE9 | AA6063 | 3.32206 |
| Cu | Si | Fe | Mn | Mg | Zn | Cr | Ti | Other Each | Others Total | Al |
| .10 (max) | .20/.60 | .35 (max) | .10 (max) | .45/.90 | .10 (max) | .10 (max) | .10 (max) | .05 | .015 | Remainder |
| Tensile Strength (psi) | Yield Strength (psi) | Elongation (% in 2") | Brinell Hardness |
| 27,000 | 21,000 | 12 | 60 |
“ Check Bhansali Exports's offered Aluminium 6063 Sheets, Plate, Coils Prices, Dimensions & Weight. Place an order or enquire about your requirements. We will glad to be service. ”
