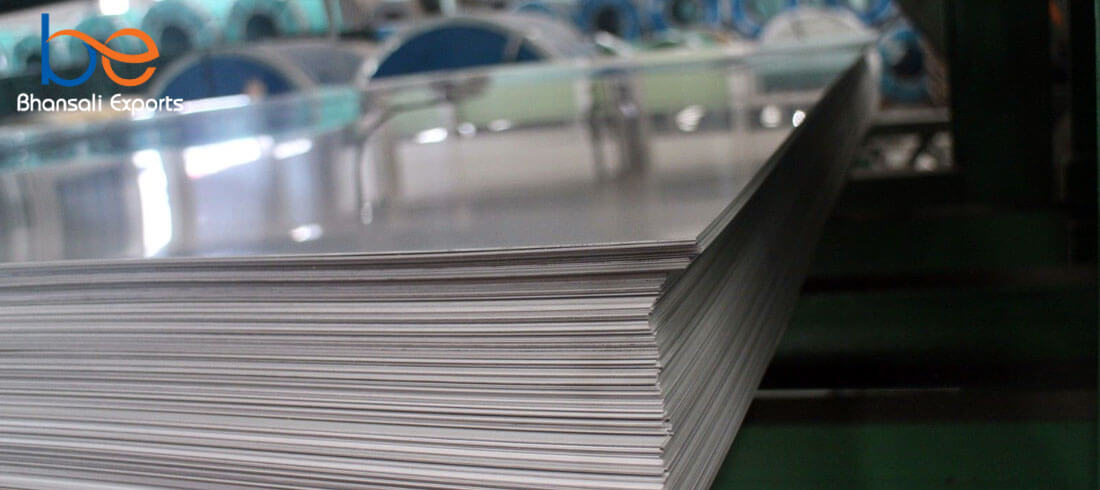

Bhansali Exports is a trusted supplier of 5083 aluminium sheet, plate, and coil, offering long-lasting metal products for a wide range of industries. Aluminium 5083 sheets are flat-rolled products that consist of a high magnesium alloy. This grade is known for its high strength and excellent corrosion resistance and operates well in challenging weather conditions and marine environments. Even after welding, the material retains its strength, offers excellent formability and is lightweight, resulting in easy handling and a long service life.
Our 5083 aluminum sheets and plates comply with ASTM B209, ASME SB209 and ANSI H35.1/H35.1(M) requirements. Each product undergoes stringent quality inspections for size and polish. The alloy provides a minimum proof stress of 125 MPa. Tensile strength ranges between 275 and 350 MPa. Hardness is approximately 75 HB. Elongation is a minimum of 12%. These values indicate an appropriate balance of strength and ductility. The material is resistant to corrosion in both marine and chemical environments. It also works effectively in low temperatures. The flat surface allows for easy cutting, bending, and welding without compromising its strength.
Table Content
Common industries include oil and gas, power plant generation, and marine. The alloy is widely used in shipbuilding, petrochemical plants, and refineries. It also benefits the aerospace, sugar and energy sectors. The construction and food processing sectors prefer this grade, as it lasts a long time and is clean. As it endures a long time, this alloy is often used in the paper and chemical sectors. We offer the material in the following forms: coils, foils, rolls, strips, flats, blanks (circular), and rings (flange). Each form works well for different types of projects and sizes of projects.
Aluminium 5083 sheet Price Details
The price of an aluminium 5083 sheet is determined by its size, thickness, and order quantity. Market rates and raw material costs can influence pricing. We offer clear and reasonable prices based on current market prices. Please click here to request an updated price list.
Rolling
Slitting
Heat Treatment
Ultrasonic Tester Checks
| Standards | ASTM B209 / ASME SB209, ANSI H35.1/H35.1(M) |
| Temper | O, F, H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H36, H38, H111, H112, H321, T3, T4, T5, T6, T7, T351, T451, T651, T851 |
| Thickness | 0.2~300mm |
| Width | 500~2500mm |
| Length | 500~10000mm |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet / Plates/ Strips/ Coils/ Chequered Plates |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
-
5083 Aluminium Sheets
-
5083 Aluminium Plate
-
5083 Aluminium Coils
-
5083 Aluminium Strips
-
5083 Aluminium Foils
-
5083 Aluminium Circle
- Aluminium Alloy 5083 Slitting Coils
- 5083 Aluminium Alloy HR Plates
- Aluminium 5083 Coils Sheet Price List
- 5083 Aluminium Cold Rolled Sheets
- ASTM B209 5083 Aluminium Plates
- Aluminum 5083 Coils
- Aluminium 5083 Plate
- 5083 Aluminium Perforated Sheet
- UNS A95083 Sheets
- Aluminium 5083 Industrial Plates
- Aluminum Polish Sheet 5083
- Aluminium 5083 Hot Rolled Plates
- Aluminum Alloy 5083 Circle
- Aluminium 5083 Sheets
- Aluminium 5083 Strips
- 5083 Aluminium Coil Stock
- 3.3547 Coils
- ASME SB209 Aluminium 5083 Sheets
- ASTM B209 Aluminium 5083 Coils
- Aluminum Alloy 5083 Rings
- Aluminium 5083 Shim Sheets
- 5083 Aluminum Hot Rolled Coils
- Aluminium 5083 Rolls
- ASTM B209 5083 Aluminium Alloy Sheets
- Aluminium Alloy 5083 HR Sheet
- Aluminum A95083 Coils
- Aluminium 5083 Chequered Plate
- Aluminium 3.3547 Plates
- 5083 Aluminium Plates Price
- Alloy 5083 Foils
- 5083 Aluminium Sheet Stock
- Alloy 5083 CR Plates
- 5083 Aluminium Shim Coils
- Alloy 5083 Sheet Price Per Kg
- Aluminium Alloy 5083 Slit Coils
- Aluminum 5083 Plates
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| 5083 | Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 - 350 MPa | 75 HB | 12 Min % |
“ Check Bhansali Exports's offered Aluminium 5083 Sheets, Plate, Coils Prices, Dimensions & Weight. Place an order or enquire about your requirements. We will glad to be service. ”
